BACKPART MOULDING AND HEEL FLANGING MACHINE

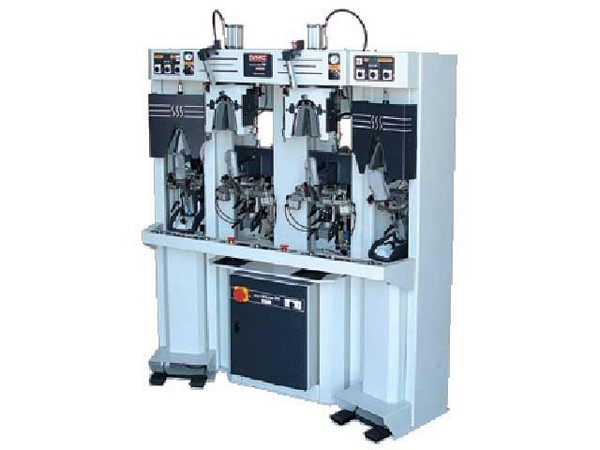

MULTIFORM 99
VERSATILE BACKPART MOULDING MACHINE WITH TWO HOT & TWO COLD STATIONS

A company with 40 years experience filled with innovation and reliability in the uppers shaping, has set new quality standards for backpart moulders.

MULTIFORM 99 shapes with the same ease high quality women's, men's and children's uppers, as well as boots, moccasins, and mini counters.

3 revolutionary patented systems:
Divided pincers with an over-stretching system.
Rotating cushion system with integrated wipers.
New airbag system.
The precision projector ensures correct and accurate size back height
Easy replacement of the moulds
The activating temperatures are controlled by electronic digital thermoregulators
The attachments of mini counter, moccasin and airbags forming are OPTIONAL

DIVIDED PINCER SYSTEM
The position of each Divided Pincer is adjusted independently according to the perimetrical shape of the aluminum last
The angle of the Pincers can be adjusted according to the heel height

OVER-STRETCHING SYSTEM
For specific uppers that require more stretching

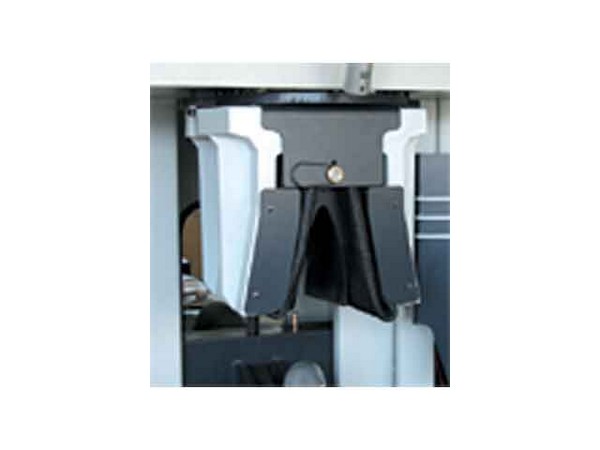

HOT STATION PINCERS
Precise pincer pulling with electronic control New generation, hot station design, fully adjustable for flat and high level heel uppers (up to 120mm)

ROTATING CUSHION SYSTEM WITH INTEGRATED WIPERS

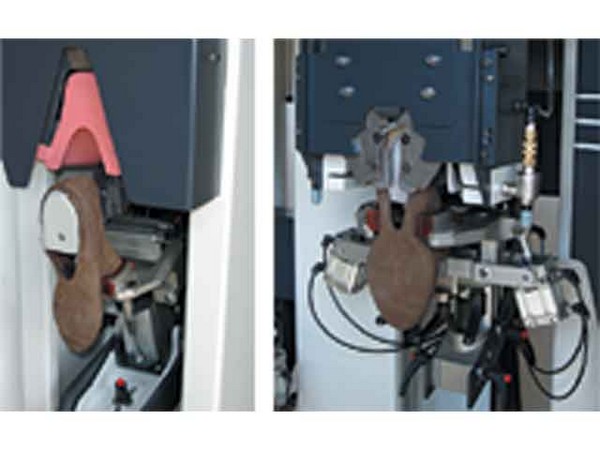

MINI COUNTER MOULDING

The new rotation cushion technology gives you total control in the difficult procedure of mini counter shaping

MOCCASIN MOULDING

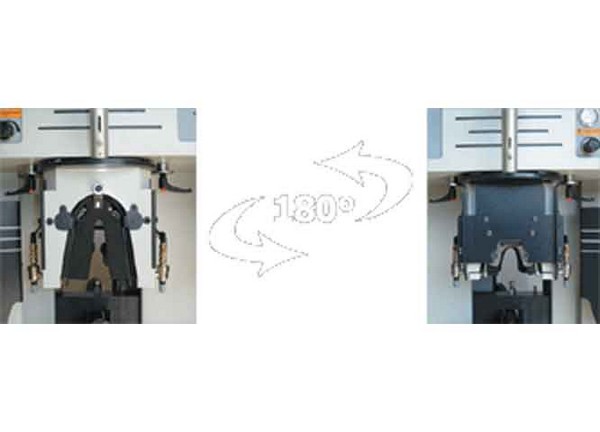

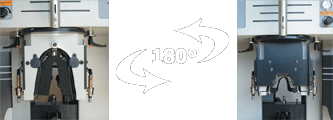

For moccasin uppers shaping, the cushion rotates 180o placing the wipers in front of the operator.
Since the moccasin last is short, the wiper system can be lowered to 70 mm to approach it. CONVERTING TIME: 3MIN.

TUBULAR AIR BAG

MULTIFORM 99 can be delivered either with cushions with integrated wiper system or tubular air bags without wipers or both systems on customer demand.CONVERTING TIME from Wiper to Airbag: 10MIN.

MINI COUNTER DEVICE

Second Option for Mini Counter's Shaping (For cases where stripes can not be applied)
Easy to use
Quick & Perfect Shaping
CONVERTING TIME: 4MIN.

TECHNICAL DATA

SPECIFICATIONS
OPERATION PRESSURE CAPACITY VOLTAGE POWER CONSUMPTION DIMENSIONS (mm) WEIGHT	Electro-Pneumatic 6Bar 1100 pairs per 8 hours max. 230V single phase 50Hz 2500 W 1780X770X2000h 560Kgs

701A

701B

701C
