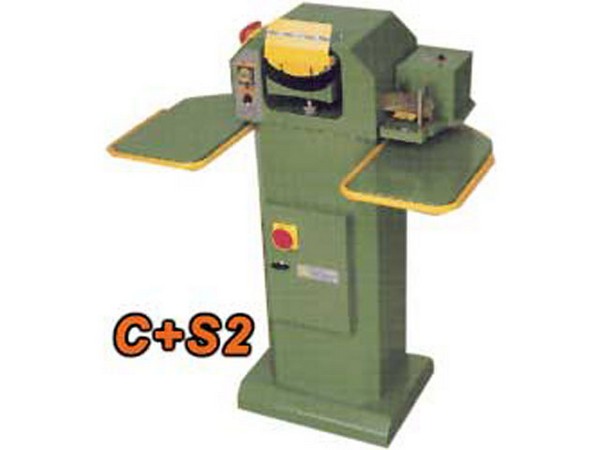

TOE PUFF APPLICATION MACHINE
MODEL : C+S2 (Manual separation)
The table on which the toe-puffs and the uppers
are pressed, is covered with special foaming
silicone in order to combine also materials
of different thickness.
Suitable for all types of uppers and boot
The high capasity of the machine is due to the
fact the operations (1),(2),(3) are made during
the pressing time.
The machine fulfils the CE safety regulations
TECHNICAL DATA
| SPECIFICATIONS |
|
| OPERATION
PRESSURE
AIR CONSUMPTION
CAPACITY
VOLTAGE
POWER CONSUMPTION
DIMENSIONS
WEIGHT
|
Pneumatic
6 Bar
0.1 SCFM (13.5 lit/min)
300 pairs per hour
230 V Single phase 50Hz
700 Watt
1000x540x1530 mm
65 Kg
|
|
