OLYMPIC 84 TWIN POLYFORM

OLYMPIC 84 TWIN POLYFORM


NAT HELLAS

Zip Code 56410,Po Box 40172
7o Klm Thessaloniki - Oraikastrou
Thessaloniki - Greece

Tel:+30 2310 525 154
Fax:+30 2310 520 181
Mail:info@nathellas.gr

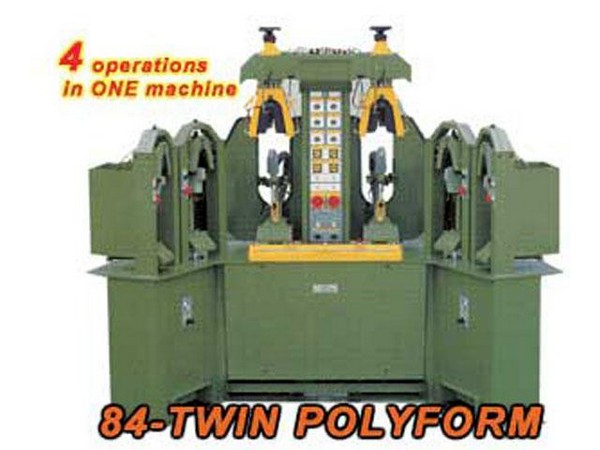

BACKPART MOULDING AND HEEL FLANGING MACHINE


BACKPART MOULDING & HEEL FLANGING MACHINE WITH FOUR HOT & TWO COLD STATIONS FOR THE FINISHED UPPER
MODEL : 84-TWIN POLYFORM

Increase of productivity Suitable for heavy shoe's uppers
For uppers with foamy materials where they are required low temperatures and extented reactivating time.

OPTIONAL
STICH DOWN, MOCASSIN MINI COUNTER ATTACHMENTS

Suitable for mixed productions like children shoes & boots as well as stitch down or mini counter which they have a need of different heated lasts

TECHNICAL DATA

SPECIFICATIONS

OPERATION
PRESSURE
AIR CONSUMPTION
CAPACITY
VOLTAGE
POWER CONSUMPTION
COOLING UNIT POWER
DIMENSIONS
WEIGHT

Pneumatic
6 Bar
8.80 CFM (285 lit/min)
1400 pairs per hour
380 V Three phase 50Hz
4.5 KWatt
0.5 HP
2350x1150x1960 mm
516 Kg



45A
45B
45C
