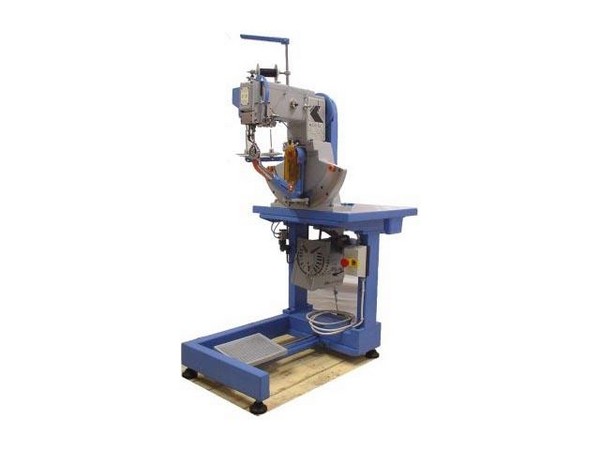

Models F10 and F10/P

Double thread sewing machine for box soles of shoes and closed ankle boots.

� High output rotary hook action stitching to sew up to 10 pairs of shoes without changing the bobbin.

� Double feeding foot and needle ensure a constant lenght of stitch.

� The horizontally floating horn supports the hook, and has a special profile to make sewing around the toe and heel areas easy, even on closed ankle boots.

� Electronic stitch by stitch motor with variable speed drive and up and down positioning of the needle.

� Pneumatic leafting of the foot machine.

� Ease of use by female operators.

� The machine may be supplied by a standard horn to stitch shoes from size 28-30 or with a little horn to stitch shoes from size 18-19 (model F10P).

� The machine corresponds to CE NORMS.

Technical Features

� NTS System (no bobbin) No
� Width 63 cm
� Depth 115 cm
� Height 125 cm
� Net Weight 134 Kg
� Threads number 2
� Avarage daily production (pairs/8 hours) 800
� Speed (stitches/minute) min/Max 800
� Stitch length (mm) min/Max 3/8
� Stitch Thickness (mm) min/Max 2/5
� Thread Diameter 1 Max
� Bobbin capacity Double (Normal on model F10P)
� Motor power 1 HP
� Feeding System with Feet + Needle
� Pressure 4 bar
� Bobbin winding device Yes
� Pneumatic bobbin ejector No
� Last stitch finishing device No
� Possibility to choose Blake or Opanka horn Opanka only
� Motor electronic
� Automatic pneumatic pressure foot lift control Yes
� Pneumatc horn motion device On demand
� Automatic thread cutting device On demand
� Needle system n. 140 / 200
