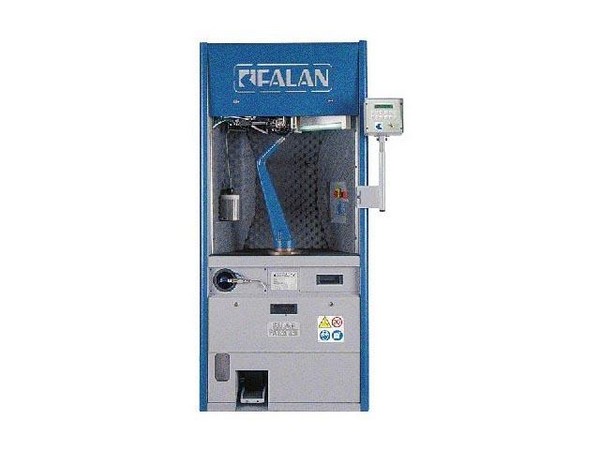

Model 3000E

The only in the world 2-thread lockstitch sole sewing machine
with shuttle thread loading by a continuous and automatic feeding.
For big industries.

Exclusively designed to meet the big companies expectations, the machine is suitable for the stitching
of any type of sole whatever kind of material they are composed with.
The lockstitch sole sewing machine mod. 3000 E adopts the new patented system of automatic thread
loading (no more bobbin ) that allows to decrease and optimize considerably the daily working time.

The time spent to control the thread quantity still in the bobbin case and its replacement (as well as its loading)
is cancelled, with a considerable save of about 1 hour and a half out of the 8 daily working hours.

taking of the thread going out of the shuttle with the automatically commanded pincer

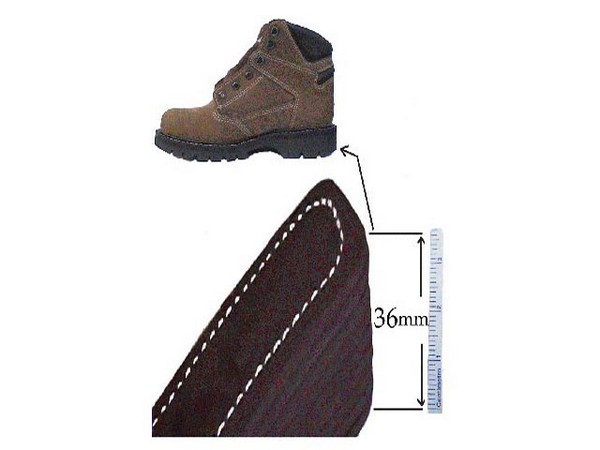

normal stitching thickness from 2 up to 36 mm (also possible to stitch bigger thicknesses,
46 mm on specific demand) without regulation for variable thicknesses,

Beyond 40 (50) mm of space for the shoe slidding between the horn and the foot-bar

Automatic setting of the thread quantity loaded at the end of the stitching cycle

The machine can be switched to work in traditional mode, excluding the automatic loading cycle.

new loopspreader easy to regulate in syncronisation with the needle
(it is impossible that the needle knocks against the loopspreader).

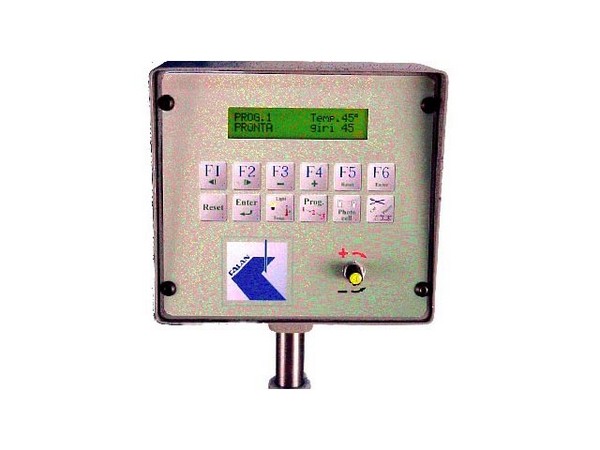

NEW!: the lockstitch sole sewing machine Mod. 3000 E assembles currently a multifunction
operator panel with an incorporated display and with a knob for increase/decrease data
(see the photo), which lets the operator:

display and to set up the temperatures of the different heated zones,

monitor and to modify very simply and quickly every functional parameter
(also to satisfy the requirements of the customer),

check, step by step, the working schedule of the machine by showing any malfunctions.
The system will provide help to the operator on how to solve the problem

continue the working phase, excluding devices or components temporarily
malfunctionning or damaged

choose different, personalized working programs.

Other features (3000 E):

The Model 3000E is equipped with the Automatic device for the Last Stitch Finishing

new feeder ensuring a constant length of stitch, even during the execution of the curves,

needle-holder bar electronically regulated (with stop in right position), presser foot automatically
regulated at the beginning and at the end of the stitching,

sound-level reduced using of material that absorbs the sound and the decrease of masses
in move (with a considerable decrease of vibrations),

maximum mechanic accessibility and reduced maintenance (thanks to the forced lubrication),

the machine corresponds to CE NORMS.

WINDOW to have the horn bobbin always in sight as the upper thread bobbin,
DIGITAL THERMOREGULATOR for the automatic heating of some parts,
upper and lower LIGHT LAMP.
