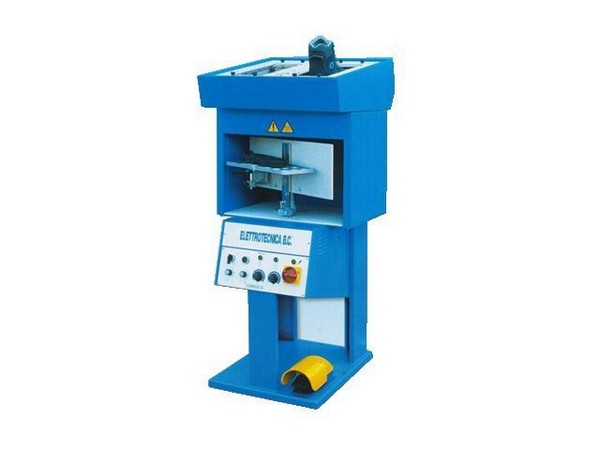

CEMENT REACTIVATING MACHINE
FOR OPANKA SOLE - MOD 133 OP

Cement reactivating machine, by means of an instantaneous infrared light source,
enabling rapid reheating of the cement-coated part of the sole and shoe.
This system has the advantage of preventing excessive softening of the sole,
particularly if in pvc.
Manual and automatic operation. output according to sole press output.

The machine is equipped with devices to allow adjustment of the following:

•time for switch the lamp
•reactivation time
•shoe reactivation temperature
•distance of sole from lamp
•tilt angle of sole-holder carriage

TECHNICAL DETAILS:

•air consumption at 5 bar: 4lt/min.
•dimensions: cm. 66(26")x72(28")x140(55")
•net weight: kg. 95(209 lbs)
•gross weight with crate: kg. 140(308 lbs)
•gross weight with case: kg. 165(363 lbs)

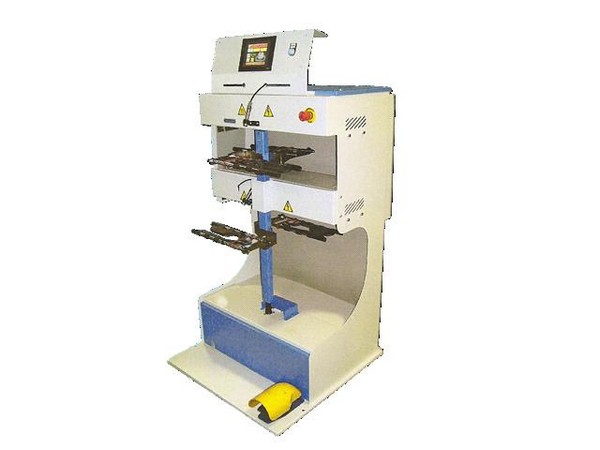

PROGRAMMABLE REACTIVATING MACHINE
(PATENT PENDING) - MOD 233

PROGRAMMABLE REACTIVATING MACHINE
FOR SOLVENT BASE CEMENT AND WATER BASE CEMENT

•Cement reactivating machine, by means of special quartz heating elements,
enabling rapid reheating of the cement-coated part of the sole and shoe
•50 programs for the sole and 50 programs for the shoe
•Measurement of reactivating temperature by infrared sensor
•Auto-levelling support system for sole and/or Shoe.

306A
