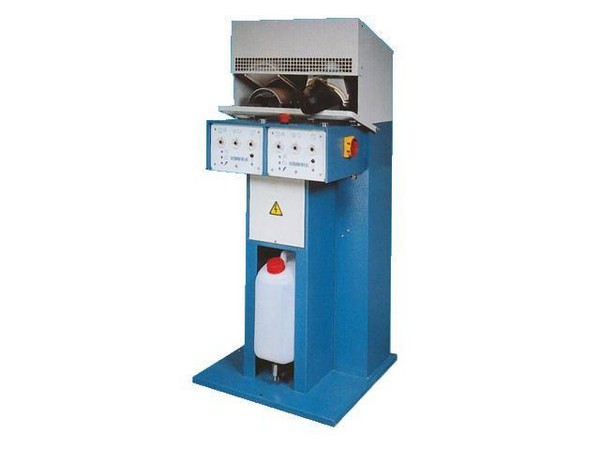

STEAMING MACHINE

Electro-pneumatic machine for steaming the toe-cap and the side of the upper and
reactivate the toe-cap before lasting.

As the upper is in direct contact with the two heated pads, the toe-cap and side are
moistened in a few seconds.
An important feature of this machine is the steam which is produced instantly by a
boiler thereby avoiding the formation of stains on the upper and considerably reduces
water consumption and the build-up of scale.

An electronic card provides adjustment of:

•steam quantity
•steam deactivation
•operating time up to 60"
•lower pad temperature up to 200° (392°F )

TECHNICAL DETAILS:

•Air comsumption at 6 BAR: 14 Lt/Min.
•Dimensions: cm.59(23")x59(23")x132(52")
•Net weight: Kg. 90 (198 LBS)
•Gross weight with crate: Kg. 130 (287 LBS)
•Gross weight with case: Kg. 150 (331 LBS)
