MACHINES COMELZ-AUTOMATIC CUTTING MACHINES AND BINDINGS COMELZ CM44S
|
KNIFE CUTTING FOR INSOLES AND SOLES |
||||||||
 |
||||||||

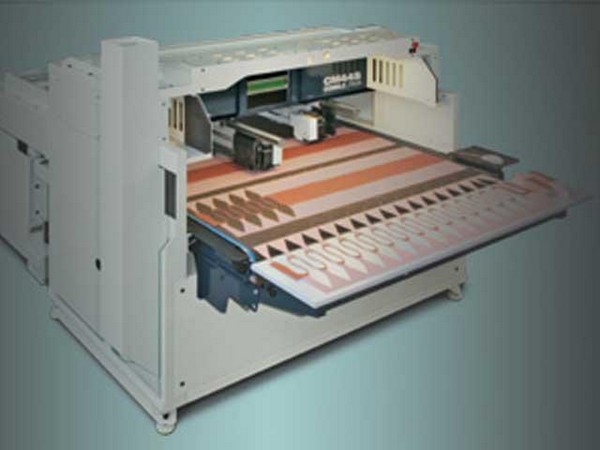

CM44S CM44S is a high productivity system. Without cutting dies it can cut insoles,
heel seats, soles, toe puffs, counters on cellulose material, cellolose material
with reinforced strip (and/or foam and/or textile), fiber-board, leather, neolite,
regenerated leather, salpa, thermoplastic, etc. CM44 has two cutting heads with

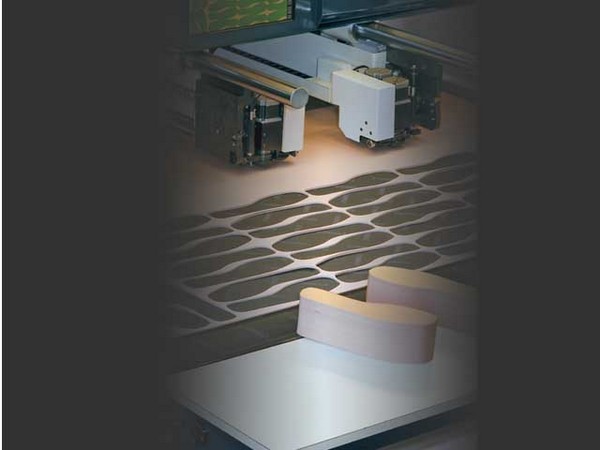

oscillating knife and a conveyor belt. The conveyor belt allows for the parallel execution of automatic material loading, piece cutting, and piece recollecting phases. The cutting heads can work without interruptions in a highly productive cycle. 2 INDEPENDENT CUTTING HEADS Fast and robust, the cutting heads have an oscillating knife and a marking
pen. They work independently from each other on an area 1500mm wide and unlimited
depth, optimizing the cutting speed and the material consumption. The loader is equipped with multiple clamping devices (18 needles and 18 suction cups) that are individually software activated, a motorized sheet centering system, and a sheet movement system controlled by 5 brushless motors. It can load every sheet of material used in the insole or sole production and
it is compatible with roll feeding. Patterns imported from CALIGOLA or even from other CAD systems (in dxf exchange format) are automatically nested. It is also possible to perform a manual nesting using a bright laser projector (to nest irregularly shaped materials like scraps of sheets or leather).
TECHNICAL DATA
|
