MOULDING MACHINE FOR INSOLES SP99

MOULDING MACHINE SP/99

Technical features:

Operation: pneumatic, oleo dynamic

Pressing power adjustable up to: 25 tons

Pressing power adjustable up to: 40 tons each machine

Maximum output : 1140 pairs/hour for two machines

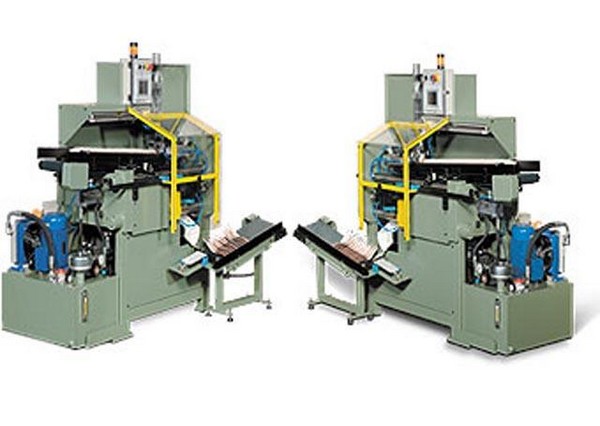

The moulding machine mod.SP/99 is a group of two machines for the completely automatic moulding of every kind of insole and sole in fibre material. This allows an easier adjustment of the machine and a fast change of the mould.
The machine is also equipped with a program to store the articles already made as to only restore them when it is necessary.
The special movement of the mould allows a fast production with the maximum precision using the normal moulds.
The machine is special right for the moulding of the high heel insoles. The press, which is at high power, is supported by 4 (four) horizontal columns. The machine is made according to CE instructions.
