SWING ARM CUTTING PRESSES

CLICKING PRESSES

Automatic stroke end with pressure switch
to use cutting-knives of different height,
without any adjustment.

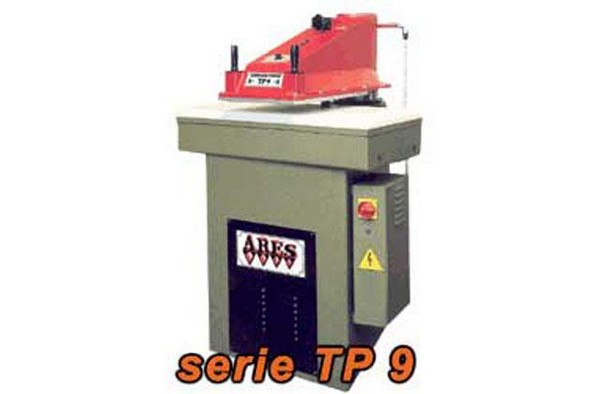

TECHNICAL DATA

SPECIFICATIONS

TP 9

TP 10

TP 12

MAXIMUM CUTTING POWER
MAXIMUM STROKE
CUTTING TABLE
ARM WIDTH
MOTOR POWER
NET WEIGHT WITH OIL
SIZES ABOUT

20 ton
100 mm
900x450 mm
380 mm
1.5 HP
780 Kg
900x1000x1370 mm

25 ton
100 mm
1000x500 mm
500 mm
1.5 HP
840 Kg
1000x1000x1370 mm

25 ton
100 mm
1200x500 mm
500 mm
1.5 HP
900 Kg
1200x1000x1370 mm

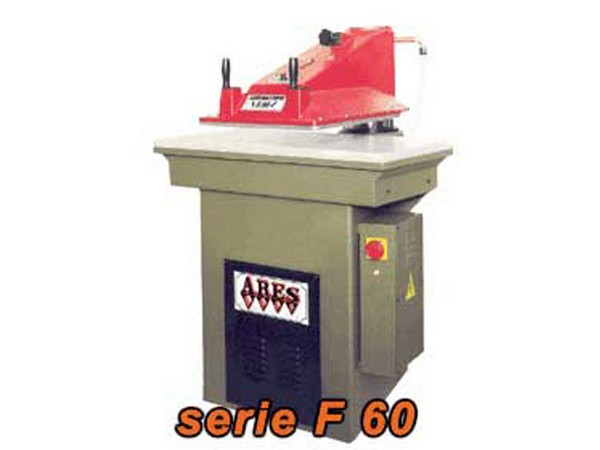

SPECIFICATIONS

F 50

F 60

F 70

MAXIMUM CUTTING POWER
MAXIMUM STROKE
CUTTING TABLE
ARM WIDTH
MOTOR POWER
NET WEIGHT WITH OIL
SIZES ABOUT

27 ton
100 mm
900x450 mm
380 mm
1.5 HP
780 Kg
900x1000x1370 mm

27 ton
100 mm
1000x500 mm
500 mm
1.5 HP
840 Kg
1000x1000x1370 mm

25 ton
100 mm
1200x500 mm
500 mm
1.5 HP
900 Kg
1200x1000x1370 mm

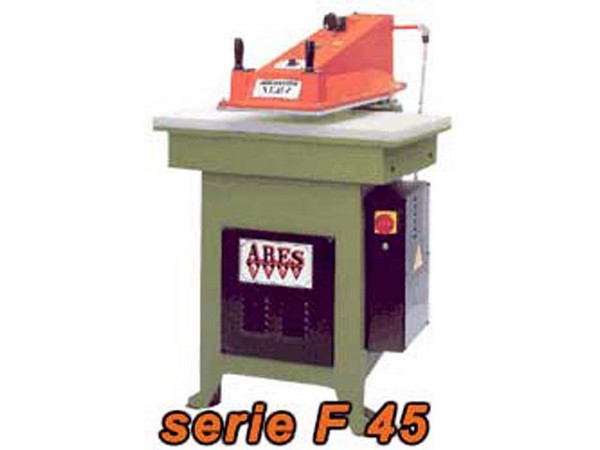

SPECIFICATIONS

F 30

F 35

F 40

F 45

MAXIMUM CUTTING POWER
MAXIMUM STROKE
CUTTING TABLE
ARM WIDTH
MOTOR POWER
NET WEIGHT WITH OIL
SIZES ABOUT

12 ton
80 mm
800x400 mm
350 mm
1 HP
510 Kg
800x915x1300 mm

16 ton
80 mm
800x400 mm
350 mm
1 HP
510 Kg
800x915x1300 mm

16 ton
80 mm
900x430 mm
370 mm
1 HP
570 Kg
900x935x1300 mm

20 ton
80 mm
900x430 mm
370 mm
1 HP
570 Kg
900x935x1300 mm

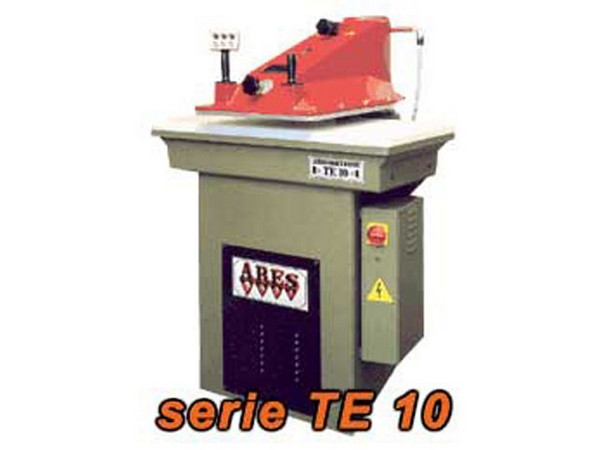

SPECIFICATIONS

TE 9

TE 10

TE 12

MAXIMUM CUTTING POWER
MAXIMUM STROKE
CUTTING TABLE
ARM WIDTH
MOTOR POWER
NET WEIGHT WITH OIL
SIZES ABOUT

20 ton
100 mm
900x450 mm
380 mm
1,5 HP
780 Kg
900x1000x1370 mm

25 ton
100 mm
1000x500 mm
500 mm
1,5 HP
840 Kg
1000x1000x1370 mm

25 ton
100 mm
1200x500 mm
500 mm
1,5 HP
900 Kg
1200x1000x1370 mm
