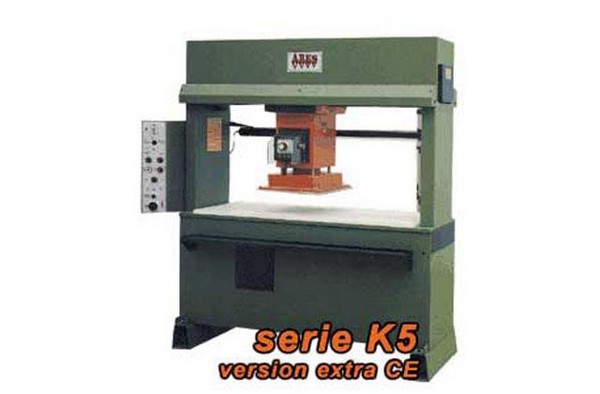

K5 TROLLEY PRESSES |
|
|

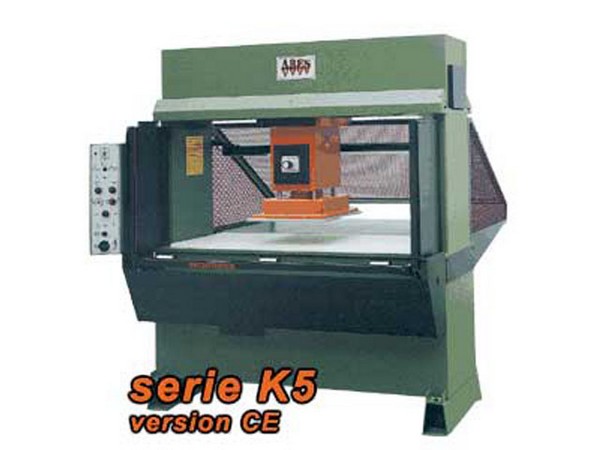

OILDYNAMIC TRAVELLING HEAD
CUTTING PRESS
MODEL :K5
MAIN FEATURES

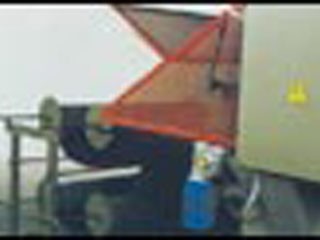

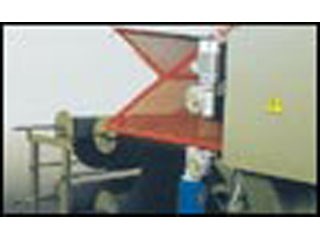

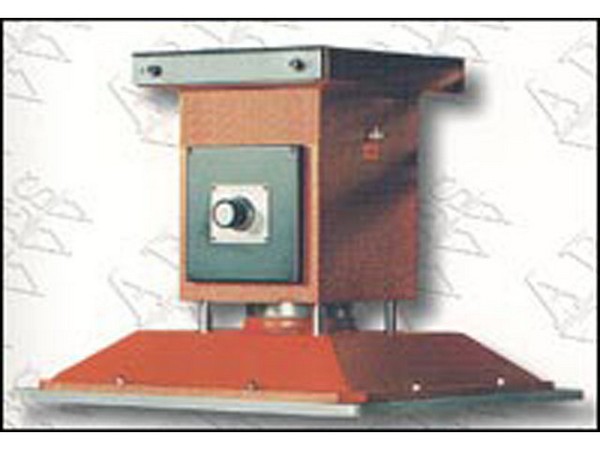

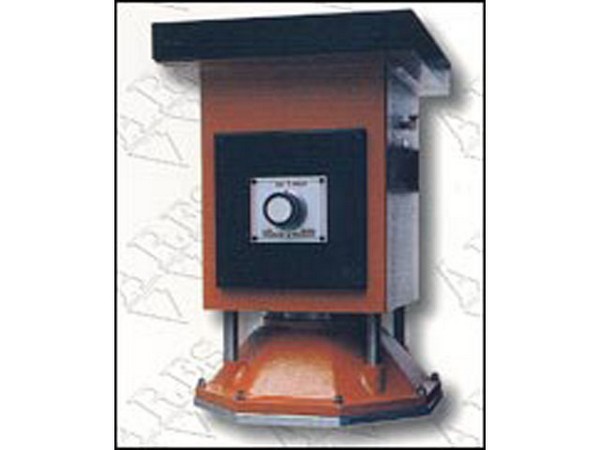

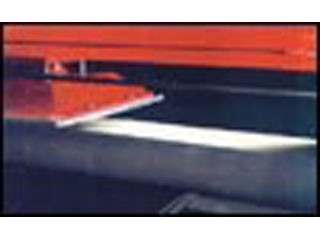

Double automatic end of stroke adjustment in order to use knives of different
heights without any setting-up or electrical end of stroke. Timed adjustable
cutting plate upstroke. Adjustable travelling head return. Photoelectric cell
protection for traverse and cutting. With control on the bar and push-buttons.
TECHNICAL DATA
| SPECIFICATION |
MOD 1 |
MOD 2 |
MOD 3 |
|
WORKING
AREA
CUTTING PLATE
CUTTING FORCE
ADJUSTABLE CUTTING STROKE
PUMP MOTOR
TRAVERSE MOTOR
SIZES WITH FEED ASSEMBLED MACHINE (mm)
NET WEIGHT WITH OIL
|
1700x530
mm
530x530 mm
25 ton
10-150 mm
2 HP
0,75 HP
2110x1600x2350
1630 Kg
|
2000x530
mm
530x530 mm
25/32 ton
10-150 mm
2 HP
0,75 HP
2420x1600x2350
1800 Kg
|
2000x660
mm
500x660 mm
32 ton
10-150 mm
2 HP
0,75 HP
2420x1730x2350
1880 Kg
|
| SPECIFICATION |
MOD 4 |
MOD 5 |
MOD 6 |
| WORKING
AREA
CUTTING PLATE
CUTTING FORCE
ADJUSTABLE CUTTING STROKE
PUMP MOTOR
TRAVERSE MOTOR
SIZES WITH FEED ASSEMBLED MACHINE (mm)
NET WEIGHT WITH OIL
|
2000x660
mm
600x660 mm
32 ton
10-150 mm
2 HP
0,75 HP
2420x1730x2350
1880 Kg
|
2000x750
mm
500x750 mm
32 ton
10-150 mm
2 HP
0,75 HP
2420x1730x2350
1950 Kg
|
2000x750
mm
750x750 mm
32 ton
10-150 mm
2 HP
0,75 HP
2420x1820x2350
2050 Kg
|
| SPECIFICATION |
MOD 7 |
MOD 8 |
MOD 9 |
| WORKING
AREA
CUTTING PLATE
CUTTING FORCE
ADJUSTABLE CUTTING STROKE
PUMP MOTOR
TRAVERSE MOTOR
SIZES WITH FEED ASSEMBLED MACHINE (mm)
NET WEIGHT WITH OIL
|
2000x800
mm
800x800 mm
32 ton
10-150 mm
2 HP
0,75 HP
2420x1870x2350
2100 Kg
|
2500x750
mm
750x750 mm
32 ton
10-150 mm
2 HP
0,75 HP
2920x1820x2420
2550 Kg
|
2500x800
mm
800x800 mm
32 ton
10-150 mm
2 HP
0,75 HP
2920x1870x2420
2600 Kg
|
